Products Information [Electronic Circuit Board]

Electronic Circuit Board

Electroless Ni/Au plating, terminal plating, bond Au plating

Various plating methods including electro Au plating (bonding, hard plating), electro palladium plating, electro tin plating, electroless Ni/Au plating and electroless Ni/Pd/Au plating are applied to connecter terminals, bonding terminals and soldered terminals of Electronic Circuit Boards.
Display an enlarged image
Flexible boards: drilling, through-hole copper plating, gold plating

NC drilling, desmearing, through-hole copper plating, via filling copper plating and gold plating are appropriately applied to various flexible boards including single-sided, double-sided and multilayer boards.
Display an enlarged image
Electronic Circuit Boards: through-hole copper plating

Through-hole copper plating, via filling copper plating, through-hole filling copper plating are applied to all types of Electronic Circuit Boards including double-sided, multilayer, buildup and flexible boards with top-class technology and on a largest scale in the industry.
Display an enlarged image

TAIYO REAL CAPABILITY IS NO.1 RANK IN THROUGHHOLE PLATING FIELD IT IS COMES FROM HIGH ENGINEERING LEVEL AND TOTAL QUALITY CONTROL SYSTEM.

With rapid progress in electronic devices, multi-layer and high density printed circuit boards are in demand for high-density mounting of more miniaturized high performance electronic devices. To meet various needs for such PC boards in a proper manner, Taiyo’s engineering capability of No.1 rank in the through-hole plating field has realized the high precision coating of rigid boards, flexible boards, ceramic boards, etc. under its original consistent process control system, which covers the entire process from drilling up to desmearing, through hole copper plating, via filling copper plating, through- hole filling copper plating, and electro and electroless gold plating. Taiyo offers high reliability and uniform quality by its excellent know-how and control of high level engineering, accumulated over more than a half century.

Photo: NC drilling machine

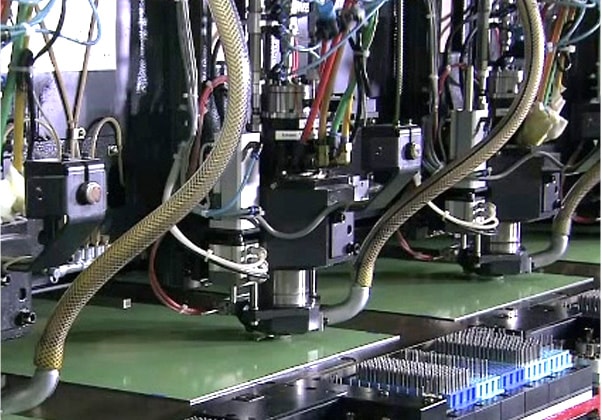

NC drilling machine

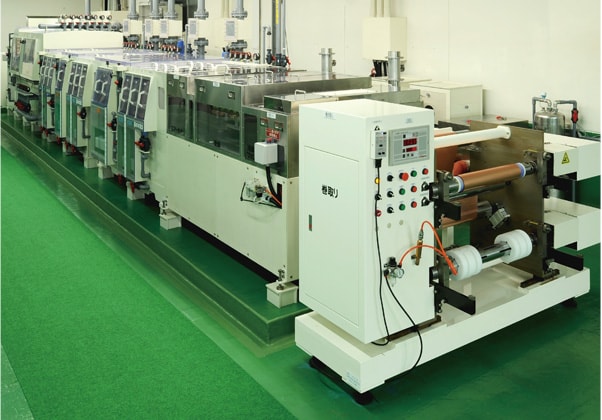

Roll to Roll Half etching equipment

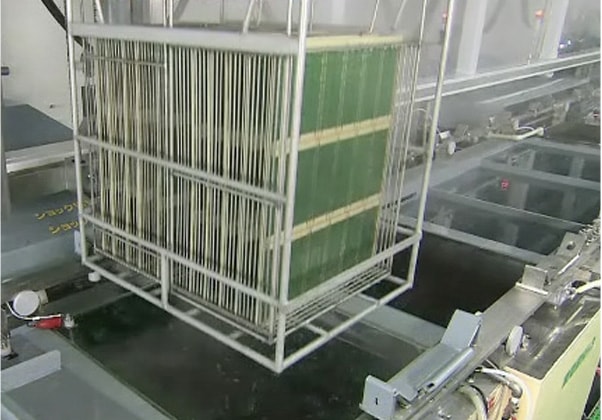

Automated electroless Ni/Au plating line

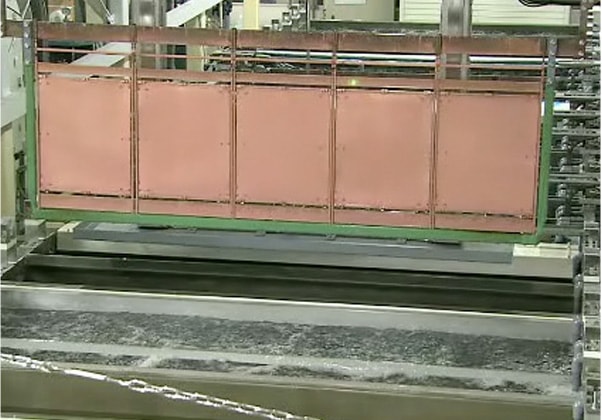

Via filling copper plating line

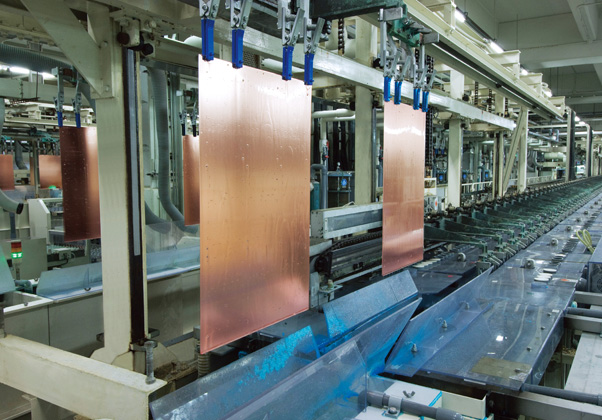

Push bar type trough-hole plating line
